H51 Series

Home Gear Pumps Box Pumps H51 Series

A close up of the front end of a black pump.

Designed to handle a wide range of applications. These pumps deliver high efficiency and low maintenance under the toughest conditions.

Common Applications:

Snow and ice control
Utility line trucks
Refuse equipment
Low boys

Categories: Box Pumps, Gear Pumps Tags: H5B2B14SI22DI, H5B4B14SI22DI, H5B4B20KI23DILB, H5B6B14SF20DILB, H5B6B14SG20DILB, H5B6B14SH20DILB, H5B6B14SI10DILB, H5B6B14SI20DILB

Description

KEY FEATURES / BENEFITS:

Replaces Parker/Commerical® P51 Series
19.4 – 27.8 GPM @ 1000 RPM
Pressure 2500 PSI – 3000 PSI maximum
Speeds to 2400 RPM
Bi-rotational

SPECIFICATIONS:

Displacement 4.49 – 6.43 (cubic in/rev.)
Maximum Operating Pressure 3000 PSI
Input Shaft: 7/8″ – 13 T
S.A.E. Mounting Flange “B”

Stock Model

P/N	DESCRIPTION
H5B6B14SF20DILB	4.46 cubic in. displacement, 19.4 GPM @1000 RPM, 3000 PSI max, 2400 RPM max, Bi-Rotational
H5B6B14SG20DILB	5.10 cubic in. displacement, 22.2 GPM @1000 RPM, 2500 PSI max, 2400 RPM max, Bi-Rotational
H5B6B14SH20DILB	5.73 cubic in. displacement, 25 GPM @1000 RPM, 2500 PSI max, 2400 RPM max, Bi-Rotational
H5B6B14SI10DILB	6.375 cubic in. displacement, 27.8 GPM @1000 RPM, 2500 PSI max, 2400 RPM max, Bi-Rotational
H5B6B14SI20DILB	6.375 cubic in. displacement, 27.8 GPM @1000 RPM, 2500 PSI max, 2400 RPM max, Bi-Rotational
H5B2B14SI22DI	6.375 cubic in. displacement, 27.8 GPM @1000 RPM, 2500 PSI max, 2400 RPM max, Bi-Rotational
H5B4B14SI22DI	6.375 cubic in. displacement, 27.8 GPM @1000 RPM, 2500 PSI max, 2400 RPM max, Bi-Rotational
H5B4B20KI23DILB	6.375 cubic in. displacement, 27.8 GPM @1000 RPM, 2500 PSI max, 2400 RPM max, Bi-Rotational

Coding Table

	Series	Rotation	Shaft End Cover	Shaft	Gear Width	Special Features
P – Pumps	2 – 20	R – CW	2A – 2 Bolt “A”	10S – 5/8-9 Spline	A – 1/2″	S – Special
M – Motors	3 – 30	L – CCW	2B – 2 Bolt “B”	12K – 3/4 Keyed	B – 3/4″	D – Doweled 31, 51, 76
	5 – 50	B – Bi-Rot	2C – 2 Bolt “C”	14S – 7/8-13 Spline	C – 1″	I – Integral Gear Set
	7 – 75		4B – 4 Bolt “B”	14K -7/8 Keyed	D – 1-1/4″	LB – Little Buddy Pec
	35 – 350		4C – 4 Bolt “C”	14KT – 7/8 Keyed Wthd	E – 1-1/2″
	55 – 5151		4D – 4 Bolt “D”	16S – 1″-15 Spline	F – 1-3/4″
	315 – 315		6B – 2/4 Bolt “B”	16K – 1″ Keyed	G -2.0″
	365 – 365		6R – 6 Bolt Round	16S6 – 1″- 6 Spline	H – 2-1/4″
			PD – Pad Mount	18K – 1-1/8 Keyed	I – 2-1/4″
				20S – 1-1/4 Spline	J – 2-3/4″
				20K – Keyed	K – 3.0″

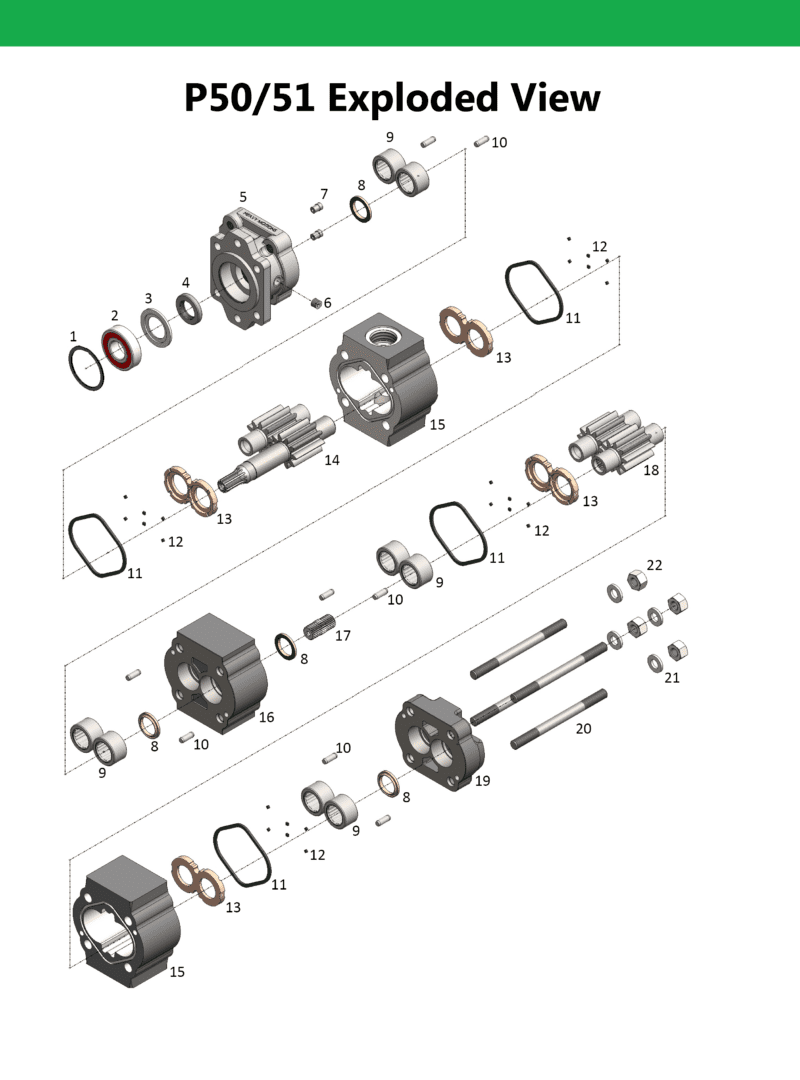

Exploded View

A drawing of parts that are in the process of assembly.

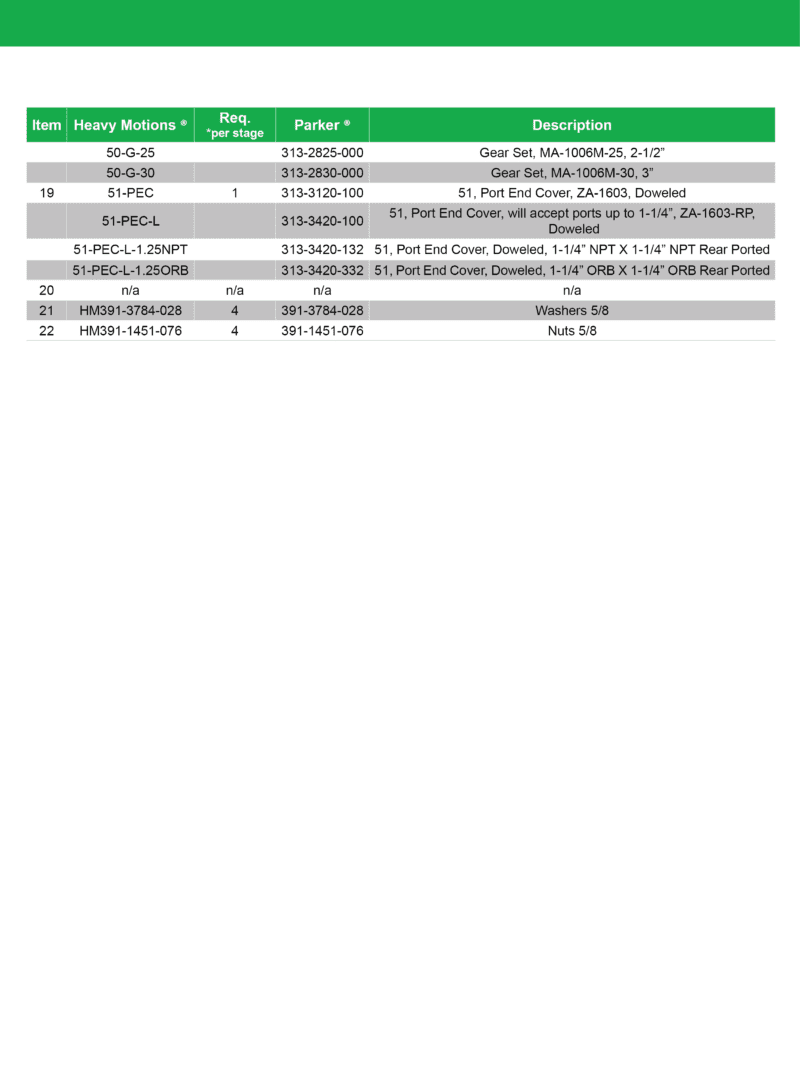

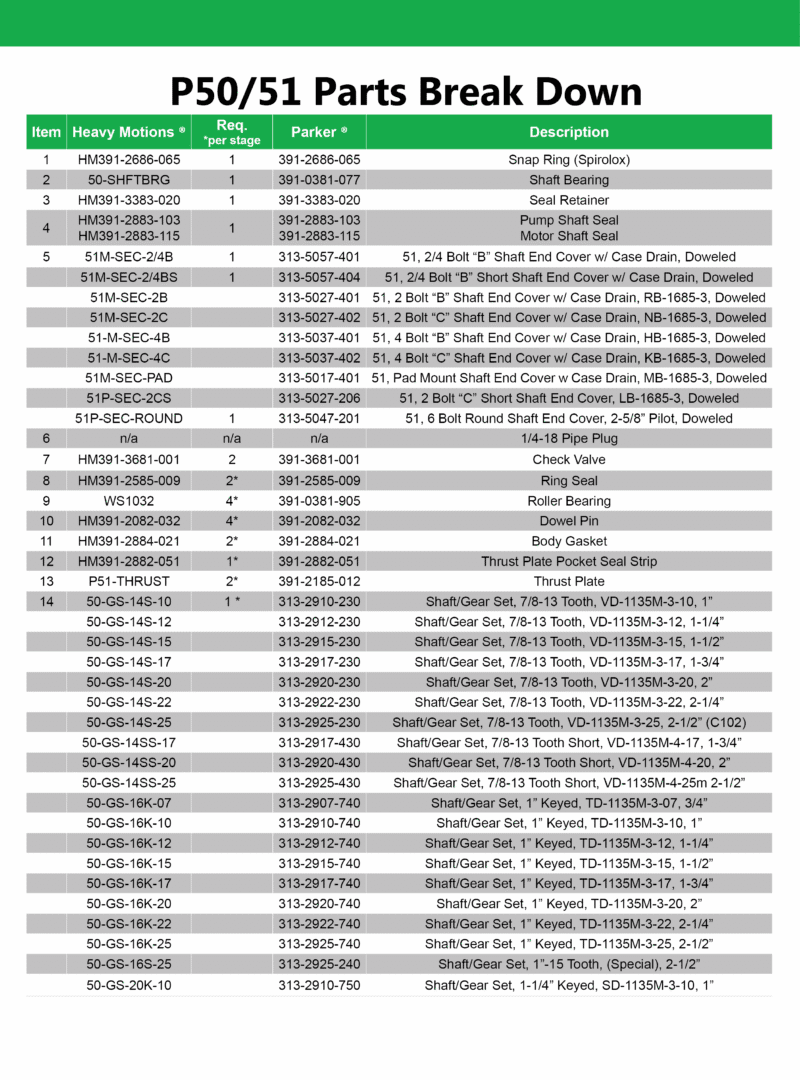

A table with several different schedules and times.

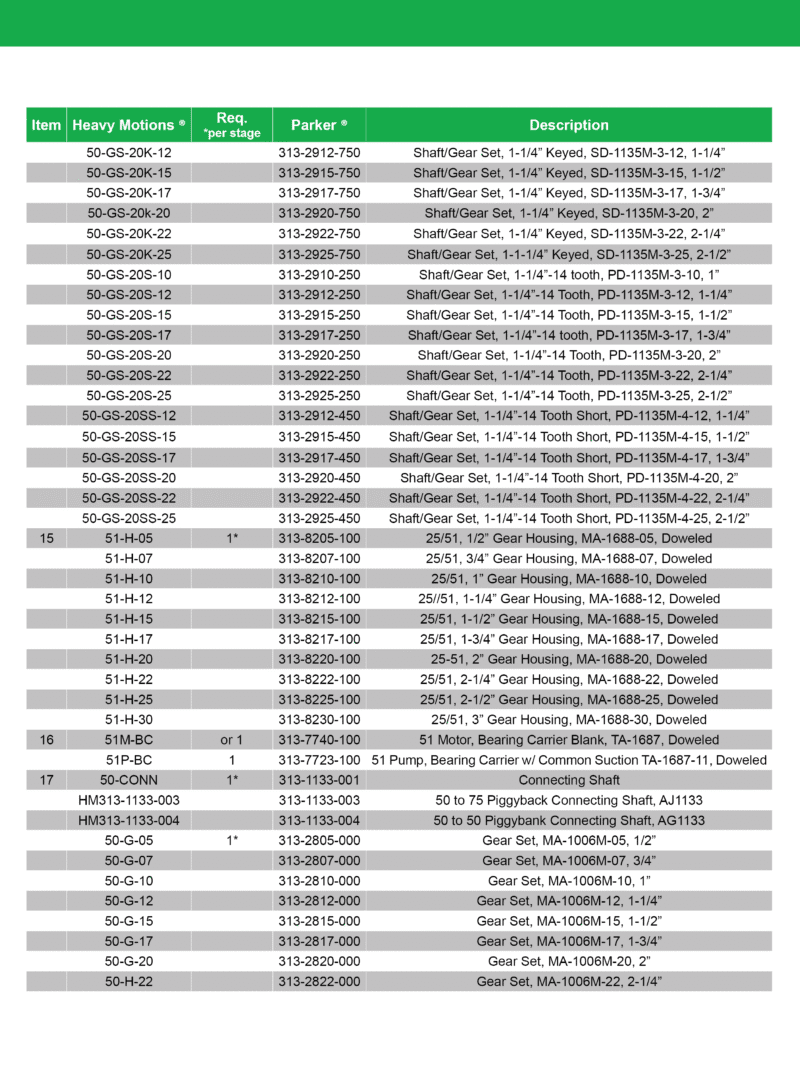

A table with many different times in it

A table with several different tables and numbers.
