H7 Series

Hydraulic gear pump with metal casing.

Categories: Gear Pumps, Heavy Motions

Product Details

The H7 Box Pump is built to perform across a wide range of demanding applications. With a rugged design, it delivers consistent high efficiency and requires minimal maintenance even under extreme operating conditions. Whether you’re working in construction, agriculture, or heavy-duty transport, the H7 is a reliable choice for tough jobs.

KEY FEATURES:

Replaces Parker/Commerical® P7 Series
39.4 GPM @ 1000 RPM
Pressure 2500 PSI maximum
Speeds to 2400 RPM

SPECIFICATIONS:

Displacement 9.22 (cubic in/rev.)
Maximum Operating Pressure 2500 PSI
Input Shaft: 1-1/4″ Keyed
S.A.E. Mounting Flange “C”

Part Number	Flange	Shaft	GPM@1000 RPM	Gear Size	Cu. In.	Max Pressure (PSI)	Rear Ports	Side Ports
H7L4C20KH20DIDV	4 C	1-1/4" Keyed	39.4	2-1/4"	9.22	2500	#12 ORB	1-1/4"x2" SF

	Series	Rotation	Shaft End Cover	Shaft	Gear Width	Special Features
P – Pumps	2 – 20	R – CW	2A – 2 Bolt “A”	10S – 5/8-9 Spline	A – 1/2″	S – Special
M – Motors	3 – 30	L – CCW	2B – 2 Bolt “B”	12K – 3/4 Keyed	B – 3/4″	D – Doweled 31, 51, 76
	5 – 50	B – Bi-Rot	2C – 2 Bolt “C”	14S – 7/8-13 Spline	C – 1″	I – Integral Gear Set
	7 – 75		4B – 4 Bolt “B”	14K -7/8 Keyed	D – 1-1/4″	LB – Little Buddy Pec
	35 – 350		4C – 4 Bolt “C”	14KT – 7/8 Keyed Wthd	E – 1-1/2″
	55 – 5151		4D – 4 Bolt “D”	16S – 1″-15 Spline	F – 1-3/4″
	315 – 315		6B – 2/4 Bolt “B”	16K – 1″ Keyed	G -2.0″
	365 – 365		6R – 6 Bolt Round	16S6 – 1″- 6 Spline	H – 2-1/4″
			PD – Pad Mount	18K – 1-1/8 Keyed	I – 2-1/4″
				20S – 1-1/4 Spline	J – 2-3/4″
				20K – Keyed	K – 3.0″

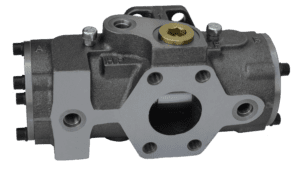

HM316-9414-001

Fitted to 2″ split flange mounting only.

Reduces pump horsepower in non operating mode at speeds to 2400 RPM.

Full pump displacement, up to 90gpm in work mode.

*Dry valve is sold separately.
