HV20 Sectional Directional Control Valves
Product Details
Our HV20 is parallel/open center circuit with capacity at 25GPM with maximum operating pressure 2500PSI with NPT ports and 3500PSI with SAE ports. It has been specifically engineered to be 100% interchangeable with many of our competitors. Our HV20 series comes with accessories ranging from main relief valves, plugs/sleeves, power beyonds, handles, stud kits and many more.
- Description

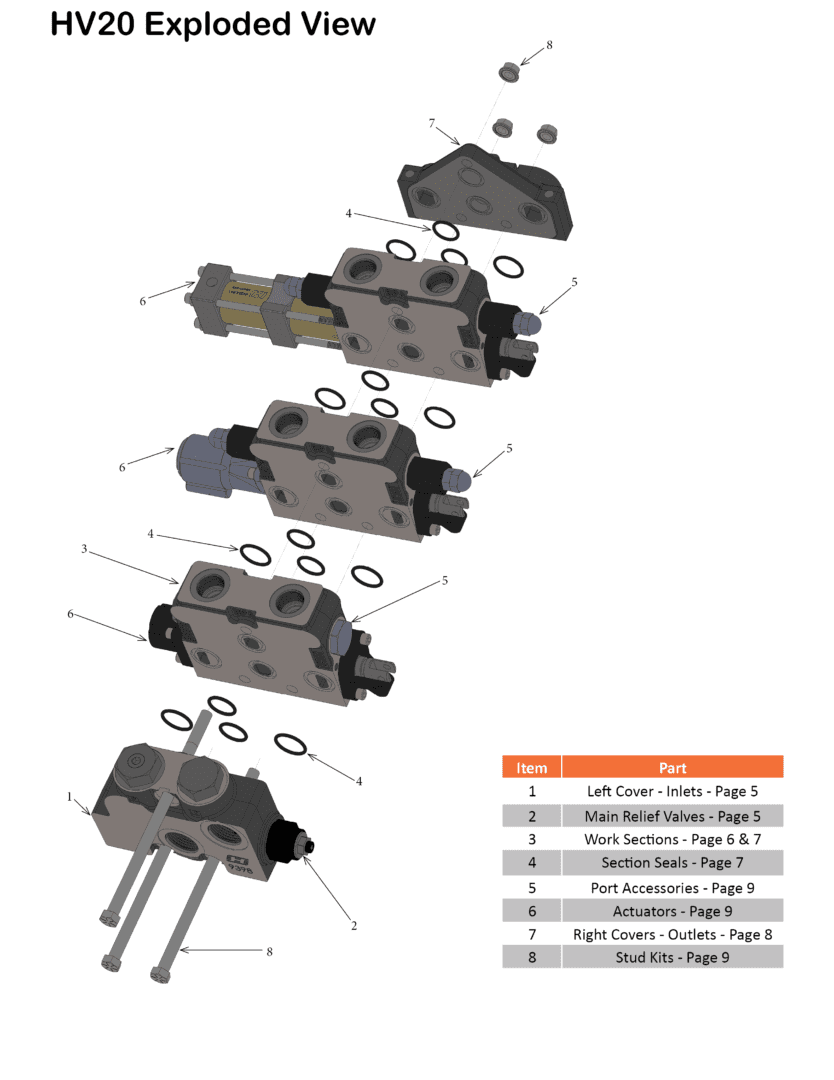

- Exploded View
- Standard Inlet Section
- Work Sections
- Standard Outlet Section
- Stud Kits
- Work Section Spool Actuator Kits
- Seal Kits
- Handle Assembly
KEY FEATURES:
- Replaces Parker/Commercial® V20
- Circuit: Parallel/Open Center
- Capacity: 25gpm nominal
- Max Operate Pressure: 3500psi SAE ports only
- Max Tank Pressure: 150psi
- Filtration: 25 micron
- Spool Force: 50lbs maximum
- Temperature: -20° to 200° F (-29° to 93° C)
- Seal Type: Buna-N
- Relief Valve: Differential type
- Material: Compacted graphite, high strength iron alloy
| Hyflow Controls ® | Cross Reference | Gresen® Reference Number |
| HV20-LC-12 | 8650029 | 20-LC-12 |
| HV20-LC-75 | 8650030 | 20-LC-75 |
| Hyflow Controls ® | Cross Reference | Gresen® Reference Number |
| HV20-08-03 | 13650149 | 20-08-03 |
| HV20-08-04 | 13650148 | 20-08-04 |
| HV20-08-DF4 | 13650838 | 20-08-DFA |
| HV20-08-F4 | 13650151 | 20-08-F4 |
| HV20-10-03 | 8650016 | 20-10-03 |
| HV20-10-04 | 8650020 | 20-10-04 |
| HV20-10-D4 | 8650000 | 20-10-D4 |
| HV20-10-DF4 | 8650009 | 20-10-DF4 |
| HV20-10-F4 | 8650018 | 20-10-F4 |
| HV20-50-03 | 8650017 | 20-50-03 |
| HV20-50-04 | 8650021 | 20-50-04 |
| HV20-50-F4 | 8650019 | 20-50-F4 |
| Hyflow Controls ® | Cross Reference | Gresen® Reference Number |
| HV20-RC-10-E | 13650145 | 20-RC-10-E |
| HV20-RC-12-E | 13650146 | 20-RC-12-E |
| HV20-RC-75-E | 13650147 | 20-RC-75-E |
| Hyflow Controls ® | Cross Reference | Gresen® Reference Number |
| HV20-K-1 | 8650087 | K-20-1 |
| HV20-K-2 | 8650088 | K-20-2 |
| HV20-K-3 | 8650089 | K-20-3 |
| HV20-K-4 | 8650090 | K-20-4 |
| HV20-K-5 | 8650091 | K-20-5 |
| HV20-K-6 | 8650092 | K-20-6 |
| HV20-K-7 | 8650093 | K-20-7 |
| HV20-K-8 | 8650094 | K-20-8 |
| Hyflow Controls ® | Cross Reference | Gresen® Reference Number |
| HV20-K-D | 8650105 | K-20-D |
| HV20-K-PA1 | 8650630 | K-20-PA1 |
| HV20-K-R | 8650106 | K-20-R |
| HV20-K-RO | 12903001 | K-20-RO |
| Hyflow Controls ® | Cross Reference | Gresen® Reference Number |
| HV20-K-6035 | 07385001 | K-6035 |
| HV20-K-6121 | 08340001 | K-6121 |
| Hyflow Controls ® | Cross Reference | Gresen® Reference Number |
| HV20-K-HH-B | 8650154 | K-20-HH-B |
| HV20-K-VH-B | 8650151 | K-20-VH-B |
| HV20-K-HH-P | 8650156 | K-20-HH-P |
