Telescopic Cylinders
Product Details
KEY FEATURES:
- Single acting
- Chrome plated stages
- Self bleeding design
- Dump truck application

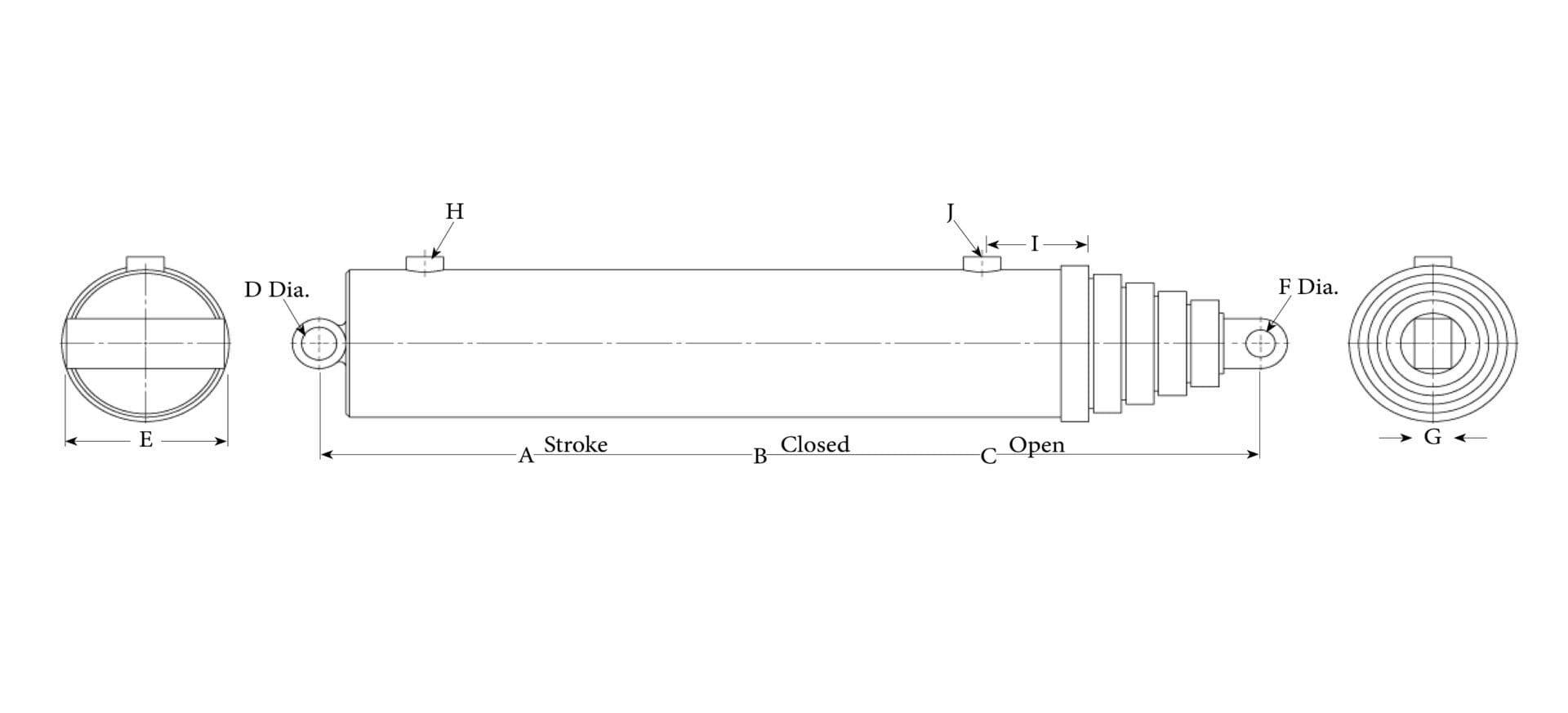

| Hyflow Controls® | Parker Reference Number® | Custom Hoist® | 1st Stage | Total Stages | A Stroke | B Closed Length | C Open Length |
| HC63-10-108 | S63DC-101-107 | 63-4402-108 | 6″ | 3 | 107.56″ (2732 mm) | 49″ (1245 mm) | 157.38″ (3997 mm) |
| HC64-10- 135 | S64DB-12-135 | 64-4435-135 | 6″ | 4 | 135″ (3429 mm) | 47.19″ (1199 mm) | 182.19″ (4628 mm) |
| HC64-10- 156 | S64DC-14-156 | 64-4435-156 | 6″ | 4 | 156″ (3962 mm) | 52.38″ (1330 mm) | 208.13″ (5286 mm) |
| D | E | F | G | H | I | J | |
| 2.13 (54mm) | 7″ (178mm) | 2.06 (52mm) | 2″ (50.8mm) | 1″ NPT | n/a | 1″ NPT | |
| 1.88 (48mm) | 8″ (203mm) | 1.56 (40mm) | 2.69 (68mm) | 1″ NPT | n/a | 1″ NPT | |
| 1.88 (48mm) | 8″ (203mm) | 1.56 (40mm) | 2.69 (68mm) | 1″ NPT | n/a | 1″ NPT |
