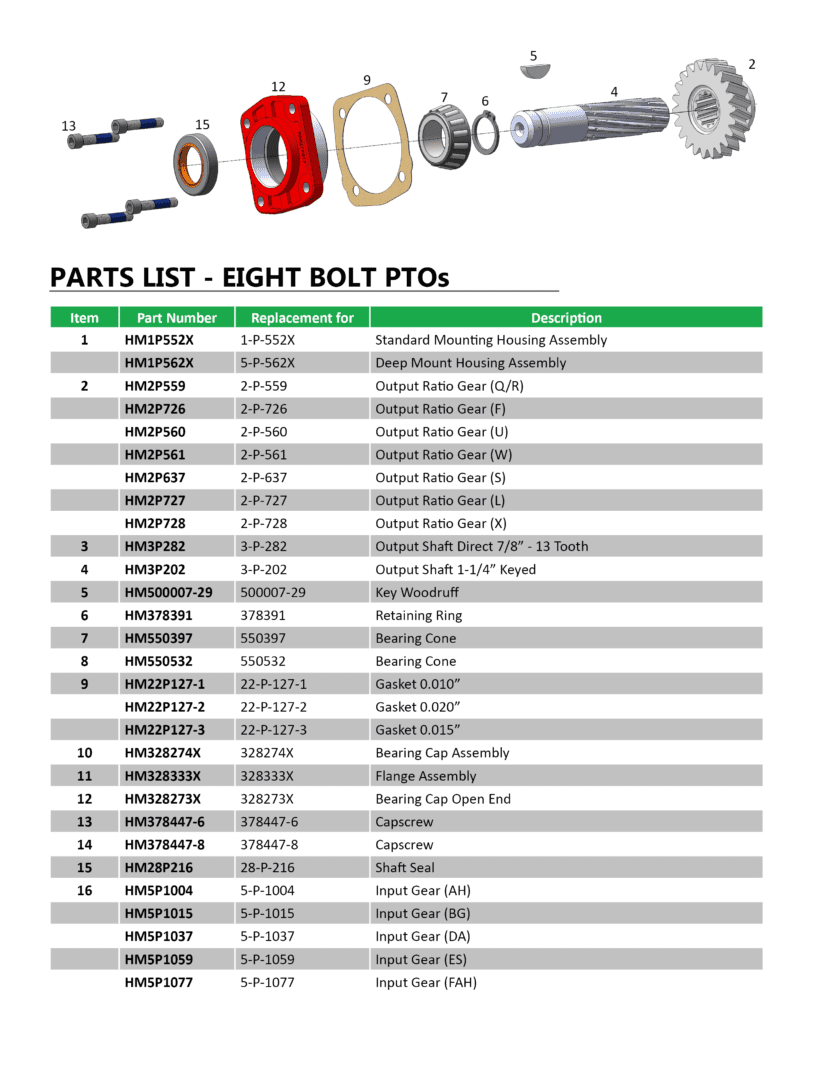

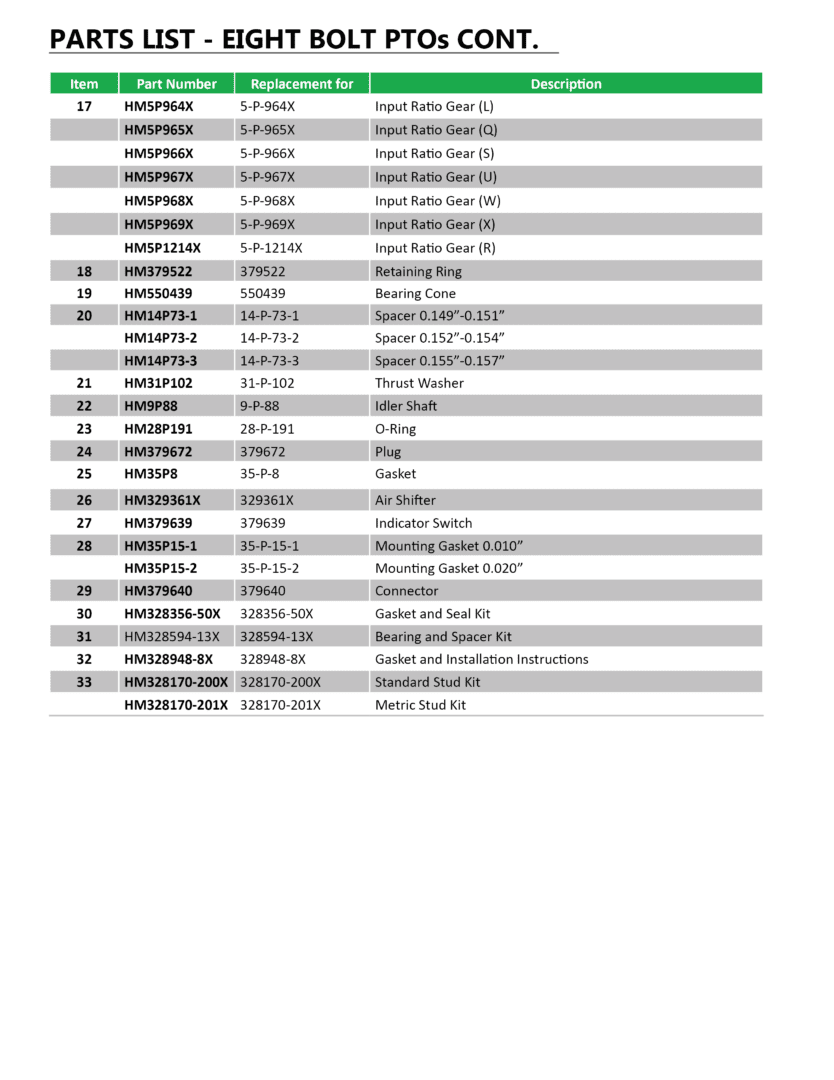

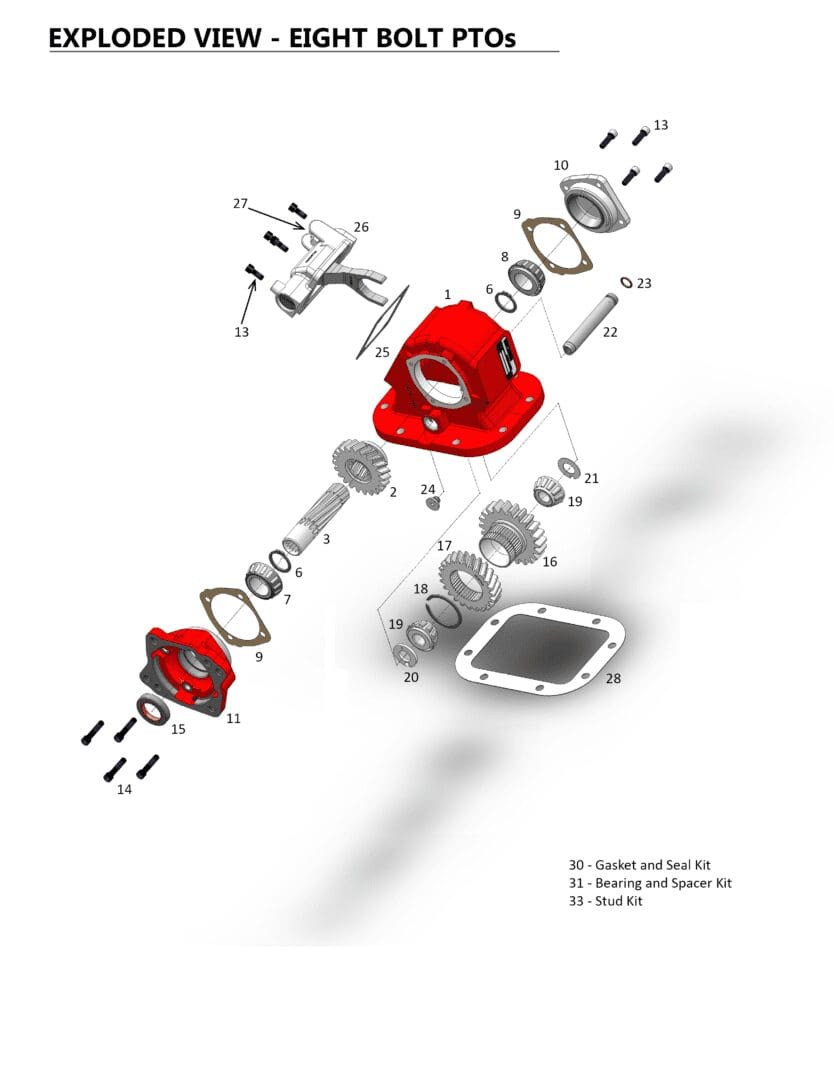

Exploded View Photo
Heavy Motions’ new HM589 power take-off series is designed to work with the most popular medium and heavy duty transmissions. Our HM589 series replaces the 489 series 8-bolt mount PTOs with standard and deep mount, direct and remote pump mount in a wide range of gear ratios. They are 100 % interchangeable, part by part. We also offer spare parts : housings, gears, shafts, shifters, valves, repair kits and more.
Categories: 8 Bolt, Power Take-Offs
Tags: 1-P-552X, 14-P-73-1, 14-P-73-2, 14-P-73-3, 2-P-559, 2-P-560, 2-P-561, 2-P-637, 2-P-726, 2-P-727, 2-P-728, 22-P-127-1, 22-P-127-2, 22-P-127-3, 28-P-191, 28-P-216, 3-P-202, 3-P-282, 31-P-102, 328170-200X, 328170-201X, 328273X, 328274X, 328333X, 328356-50X, 328594-13X, 328948-8X, 329219X, 329358X, 329361X, 329648X, 35-P-15-1, 35-P-15-2, 35-P-8, 378391, 378414, 378447-6, 378447-8, 379044-7, 379522, 379639, 379640, 379672, 489**AH, 489**BG, 489**DA, 489*F, 489*FAH, 489*L, 489*Q, 489*R, 489*S, 489*U, 489*W, 489*X, 489GFAHX-A3XK, 489GFAHX-A5XK, 489GFAHX-V3XK, 489GFAHX-V5XK, 489GLAHX-A3XK, 489GLAHX-A5XK, 489GLAHX-V3XD, 489GLAHX-V3XK, 489GLAHX-V5XK, 489GQAHX-A3XK, 489GQAHX-A5XK, 489GQAHX-V3XK, 489GQAHX-V5XK, 489GRAHX-A3XK, 489GRAHX-A5XK, 489GRAHX-V3XK, 489GRAHX-V5XK, 489GSAHX-A3XK, 489GSAHX-A5XK, 489GSAHX-V3XK, 489GSAHX-V5XK, 489GUAHX-A3XK, 489GUAHX-A5XK, 489GUAHX-V3XK, 489GUAHX-V5XK, 489GWAHX-A3XK, 489GWAHX-A5XK, 489GWAHX-V3XK, 489GWAHX-V5XK, 489GXAHX-A3XK, 489GXAHX-A5XK, 489GXAHX-V3XK, 489GXAHX-V5XK, 489XFAHX-A3XK, 489XFAHX-A5XK, 489XFAHX-S3XK, 489XFAHX-V3XD, 489XFAHX-V3XK, 489XFAHX-V5XK, 489XLAHX-A3XK, 489XLAHX-A5XK, 489XLAHX-S3XK, 489XLAHX-V3XD, 489XLAHX-V3XK, 489XLAHX-V5XK, 489XQAHX-A3XD, 489XQAHX-A3XK, 489XQAHX-A5XK, 489XQAHX-V3XD, 489XQAHX-V3XK, 489XQAHX-V5XK, 489XRAHX-A3XK, 489XRAHX-A5XK, 489XRAHX-V3XD, 489XRAHX-V3XK, 489XRAHX-V5XK, 489XSAHX-A3XK, 489XSAHX-A5XK, 489XSAHX-V3XK, 489XSAHX-V5XK, 489XUAHX-A3XK, 489XUAHX-A5XK, 489XUAHX-V3XK, 489XUAHX-V5XK, 489XWAHX-A3XD, 489XWAHX-A3XK, 489XWAHX-A5XK, 489XWAHX-V3XD, 489XWAHX-V3XK, 489XWAHX-V5XK, 489XXAHX-A3XK, 489XXAHX-A5XK, 489XXAHX-V3XK, 489XXAHX-V5XK, 489ZQDAX-A5XK, 489ZQDAX-V5XK, 5-P-1004, 5-P-1015, 5-P-1037, 5-P-1214X, 5-P-562X, 5-P-964X, 5-P-965X, 5-P-966X, 5-P-967X, 5-P-968X, 5-P-969X, 500007-29, 550397, 550439, 550532, 9-P-88, HM101S-LH, HM101V, HM103WK, HM103WKT, HM14P73-1, HM14P73-2, HM14P73-3, HM1IL, HM1P552X, HM1P562X, HM1PPV, HM1TB, HM22P127-1, HM22P127-2, HM22P127-3, HM28P191, HM28P216, HM2P559, HM2P560, HM2P561, HM2P637, HM2P726, HM2P727, HM2P728, HM31P102, HM328170-200X, HM328170-201X, HM328273X, HM328274X, HM328333X, HM328356-50X, HM328594-13X, HM328948-8X, HM329361X, HM35P15-1, HM35P15-2, HM35P8, HM378391, HM378447-6, HM378447-8, HM379522, HM379639, HM379640, HM379672, HM3P202, HM3P282, HM500007-29, HM503WK, HM550397, HM550439, HM550532, HM589**AH, HM589**BG, HM589**DA, HM589*F, HM589*FAH, HM589*L, HM589*Q, HM589*R, HM589*S, HM589*U, HM589*W, HM589*X, HM589GFAHX-A3XK, HM589GFAHX-A5XK, HM589GFAHX-V3XK, HM589GFAHX-V5XK, HM589GLAHX-A3XK, HM589GLAHX-A5XK, HM589GLAHX-V3XD, HM589GLAHX-V3XK, HM589GLAHX-V5XK, HM589GQAHX-A3XK, HM589GQAHX-A5XK, HM589GQAHX-V3XK, HM589GQAHX-V5XK, HM589GRAHX-A3XK, HM589GRAHX-A5XK, HM589GRAHX-V3XK, HM589GRAHX-V5XK, HM589GSAHX-A3XK, HM589GSAHX-A5XK, HM589GSAHX-V3XK, HM589GSAHX-V5XK, HM589GUAHX-A3XK, HM589GUAHX-A5XK, HM589GUAHX-V3XK, HM589GUAHX-V5XK, HM589GWAHX-A3XK, HM589GWAHX-A5XK, HM589GWAHX-V3XK, HM589GWAHX-V5XK, HM589GXAHX-A3XK, HM589GXAHX-A5XK, HM589GXAHX-V3XK, HM589GXAHX-V5XK, HM589XFAHX-A3XK, HM589XFAHX-A5XK, HM589XFAHX-S3XK, HM589XFAHX-V3XD, HM589XFAHX-V3XK, HM589XFAHX-V5XK, HM589XLAHX-A3XK, HM589XLAHX-A5XK, HM589XLAHX-S3XK, HM589XLAHX-V3XD, HM589XLAHX-V3XK, HM589XLAHX-V5XK, HM589XQAHX-A3XD, HM589XQAHX-A3XK, HM589XQAHX-A5XK, HM589XQAHX-V3XD, HM589XQAHX-V3XK, HM589XQAHX-V5XK, HM589XRAHX-A3XK, HM589XRAHX-A5XK, HM589XRAHX-V3XD, HM589XRAHX-V3XK, HM589XRAHX-V5XK, HM589XSAHX-A3XK, HM589XSAHX-A5XK, HM589XSAHX-V3XK, HM589XSAHX-V5XK, HM589XUAHX-A3XK, HM589XUAHX-A5XK, HM589XUAHX-V3XK, HM589XUAHX-V5XK, HM589XWAHX-A3XD, HM589XWAHX-A3XK, HM589XWAHX-A5XK, HM589XWAHX-V3XD, HM589XWAHX-V3XK, HM589XWAHX-V5XK, HM589XXAHX-A3XK, HM589XXAHX-A5XK, HM589XXAHX-V3XK, HM589XXAHX-V5XK, HM589ZQDAX-A5XK, HM589ZQDAX-V5XK, HM5P1004, HM5P1015, HM5P1037, HM5P1214X, HM5P964X, HM5P965X, HM5P966X, HM5P967X, HM5P968X, HM5P969X, HM9P88, HMTower-8
- Exploded View Photo
- Assembled PTOs In Stock
- Parts in Stock
- Ratio Gears
- Input Gears
- Accessories
- Installation & Owner's Manual
- Reviews (0)
Assembled PTOs In Stock
| Heavy Motions® | Chelsea® Reference Number | Description |
| HM589GFAHX-A3XK | 489GFAHX-A3XK | (Metric) PTO with Shift Valve Kit and Tubing |
| HM589GFAHX-A5XK | 489GFAHX-A5XK | (Metric) PTO with Shift Valve Kit and Tubing |
| HM589GFAHX-V3XK | 489GFAHX-V3XK | (Metric) PTO |
| HM589GFAHX-V5XK | 489GFAHX-V5XK | (Metric) PTO |
| HM589GLAHX-A3XK | 489GLAHX-A3XK | (Metric) PTO with Shift Valve Kit and Tubing |
| HM589GLAHX-A5XK | 489GLAHX-A5XK | (Metric) PTO with Shift Valve Kit and Tubing |
| HM589GLAHX-V3XD | 489GLAHX-V3XD | (Remote Mount-Metric) PTO |
| HM589GLAHX-V3XK | 489GLAHX-V3XK | (Metric) PTO |
| HM589GLAHX-V5XK | 489GLAHX-V5XK | (Metric) PTO |
| HM589GQAHX-A3XK | 489GQAHX-A3XK | (Metric) PTO with Shift Valve Kit and Tubing |
| HM589GQAHX-A5XK | 489GQAHX-A5XK | (Metric) PTO with Shift Valve Kit and Tubing |
| HM589GQAHX-V3XK | 489GQAHX-V3XK | (Metric) PTO |
| HM589GQAHX-V5XK | 489GQAHX-V5XK | (Metric) PTO |
| HM589GRAHX-A3XK | 489GRAHX-A3XK | (Metric) PTO with Shift Valve Kit and Tubing |
| HM589GRAHX-A5XK | 489GRAHX-A5XK | (Metric) PTO with Shift Valve Kit and Tubing |
| HM589GRAHX-V3XK | 489GRAHX-V3XK | (Metric) PTO |
| HM589GRAHX-V5XK | 489GRAHX-V5XK | (Metric) PTO |
| HM589GSAHX-A3XK | 489GSAHX-A3XK | (Metric) PTO with Shift Valve Kit and Tubing |
| HM589GSAHX-A5XK | 489GSAHX-A5XK | (Metric) PTO with Shift Valve Kit and Tubing |
| HM589GSAHX-V3XK | 489GSAHX-V3XK | (Metric) PTO |
| HM589GSAHX-V5XK | 489GSAHX-V5XK | (Metric) PTO |
| HM589GUAHX-A3XK | 489GUAHX-A3XK | (Metric) PTO with Shift Valve Kit and Tubing |
| HM589GUAHX-A5XK | 489GUAHX-A5XK | (Metric) PTO with Shift Valve Kit and Tubing |
| HM589GUAHX-V3XK | 489GUAHX-V3XK | (Metric) PTO |
| HM589GUAHX-V5XK | 489GUAHX-V5XK | (Metric) PTO |
| HM589GWAHX-A3XK | 489GWAHX-A3XK | (Metric) PTO with Shift Valve Kit and Tubing |
| HM589GWAHX-A5XK | 489GWAHX-A5XK | (Metric) PTO with Shift Valve Kit and Tubing |
| HM589GWAHX-V3XK | 489GWAHX-V3XK | (Metric) PTO |
| HM589GWAHX-V5XK | 489GWAHX-V5XK | (Metric) PTO |
| HM589GXAHX-A3XK | 489GXAHX-A3XK | (Metric) PTO with Shift Valve Kit and Tubing |
| HM589GXAHX-A5XK | 489GXAHX-A5XK | (Metric) PTO with Shift Valve Kit and Tubing |
| HM589GXAHX-V3XK | 489GXAHX-V3XK | (Metric) PTO |
| HM589GXAHX-V5XK | 489GXAHX-V5XK | (Metric) PTO |
| HM589XFAHX-A3XK | 489XFAHX-A3XK | PTO with Shift Valve Kit and Tubing |
| HM589XFAHX-A5XK | 489XFAHX-A5XK | PTO with Shift Valve Kit and Tubing |
| HM589XFAHX-S3XK | 489XFAHX-S3XK | PTO with Combo Valve |
| HM589XFAHX-V3XD | 489XFAHX-V3XD | Remote Mount |
| HM589XFAHX-V3XK | 489XFAHX-V3XK | PTO |
| HM589XFAHX-V5XK | 489XFAHX-V5XK | PTO |
| HM589XLAHX-A3XK | 489XLAHX-A3XK | PTO with Shift Valve Kit and Tubing |
| HM589XLAHX-A5XK | 489XLAHX-A5XK | PTO with Shift Valve Kit and Tubing |
| HM589XLAHX-S3XK | 489XLAHX-S3XK | PTO with Combo Valve |
| HM589XLAHX-V3XD | 489XLAHX-V3XD | Remote Mount |
| HM589XLAHX-V3XK | 489XLAHX-V3XK | PTO |
| HM589XLAHX-V5XK | 489XLAHX-V5XK | PTO |
| HM589XQAHX-A3XD | 489XQAHX-A3XD | PTO with Shift Valve Kit and Tubing |
| HM589XQAHX-A3XK | 489XQAHX-A3XK | PTO with Shift Valve Kit and Tubing |
| HM589XQAHX-A5XK | 489XQAHX-A5XK | PTO with Shift Valve Kit and Tubing |
| HM589XQAHX-V3XD | 489XQAHX-V3XD | Remote Mount |
| HM589XQAHX-V3XK | 489XQAHX-V3XK | PTO |
| HM589XQAHX-V5XK | 489XQAHX-V5XK | PTO |
| HM589XRAHX-A3XK | 489XRAHX-A3XK | PTO with Shift Valve Kit and Tubing |
| HM589XRAHX-A5XK | 489XRAHX-A5XK | PTO with Shift Valve Kit and Tubing |
| HM589XRAHX-V3XD | 489XRAHX-V3XD | Remote Mount |
| HM589XRAHX-V3XK | 489XRAHX-V3XK | PTO |
| HM589XRAHX-V5XK | 489XRAHX-V5XK | PTO |
| HM589XSAHX-A3XK | 489XSAHX-A3XK | PTO with Shift Valve Kit and Tubing |
| HM589XSAHX-A5XK | 489XSAHX-A5XK | PTO with Shift Valve Kit and Tubing |
| HM589XSAHX-V3XK | 489XSAHX-V3XK | PTO |
| HM589XSAHX-V5XK | 489XSAHX-V5XK | PTO |
| HM589XUAHX-A3XK | 489XUAHX-A3XK | PTO with Shift Valve Kit and Tubing |
| HM589XUAHX-A5XK | 489XUAHX-A5XK | PTO with Shift Valve Kit and Tubing |
| HM589XUAHX-V3XK | 489XUAHX-V3XK | PTO |
| HM589XUAHX-V5XK | 489XUAHX-V5XK | PTO |
| HM589XWAHX-A3XD | 489XWAHX-A3XD | PTO with Shift Valve Kit and Tubing |
| HM589XWAHX-A3XK | 489XWAHX-A3XK | PTO with Shift Valve Kit and Tubing |
| HM589XWAHX-A5XK | 489XWAHX-A5XK | PTO with Shift Valve Kit and Tubing |
| HM589XWAHX-V3XD | 489XWAHX-V3XD | Remote Mount |
| HM589XWAHX-V3XK | 489XWAHX-V3XK | PTO |
| HM589XWAHX-V5XK | 489XWAHX-V5XK | PTO |
| HM589XXAHX-A3XK | 489XXAHX-A3XK | PTO with Shift Valve Kit and Tubing |
| HM589XXAHX-A5XK | 489XXAHX-A5XK | PTO with Shift Valve Kit and Tubing |
| HM589XXAHX-V3XK | 489XXAHX-V3XK | PTO |
| HM589XXAHX-V5XK | 489XXAHX-V5XK | PTO |
| HM589ZQDAX-A5XK | 489ZQDAX-A5XK | PTO with Shift Valve Kit and Tubing |
| HM589ZQDAX-V5XK | 489ZQDAX-V5XK | PTO |
Parts in Stock
| Heavy Motions ® | Chelsea® Reference Number | Description |
| HM1P552X | 1-P-552X | Standard Mounting Housing Assembly |
| HM1P562X | 5-P-562X | Deep Mount Housing Assembly |
| HM2P559 | 2-P-559 | Output Ratio Gear (Q/R) |
| HM2P726 | 2-P-726 | Output Ratio Gear (F) |
| HM2P560 | 2-P-560 | Output Ratio Gear (U) |
| HM2P561 | 2-P-561 | Output Ratio Gear (W) |
| HM2P637 | 2-P-637 | Output Ratio Gear (S) |
| HM2P727 | 2-P-727 | Output Ratio Gear (L) |
| HM2P728 | 2-P-728 | Output Ratio Gear (X) |
| HM3P282 | 3-P-282 | Output Shaft Direct 7/8” – 13 Tooth |
| HM3P202 | 3-P-202 | Output Shaft 1-1/4” Keyed |
| HM500007-29 | 500007-29 | Key Woodruff |
| HM378391 | 378391 | Retaining Ring |
| HM550397 | 550397 | Bearing Cone |
| HM550532 | 550532 | Bearing Cone |
| HM22P127-1 | 22-P-127-1 | Gasket 0.010” |
| HM22P127-2 | 22-P-127-2 | Gasket 0.020” |
| HM22P127-3 | 22-P-127-3 | Gasket 0.015” |
| HM328274X | 328274X | Bearing Cap Assembly |
| HM328333X | 328333X | Flange Assembly |
| HM328273X | 328273X | Bearing Cap Open End |
| HM378447-6 | 378447-6 | Capscrew |
| HM378447-8 | 378447-8 | Capscrew |
| HM28P216 | 28-P-216 | Shaft Seal |
| HM5P1004 | 5-P-1004 | Input Gear (AH) |
| HM5P1015 | 5-P-1015 | Input Gear (BG) |
| HM5P1037 | 5-P-1037 | Input Gear (DA) |
| HM5P964X | 5-P-964X | Input Ratio Gear (L) |
| HM5P965X | 5-P-965X | Input Ratio Gear (Q) |
| HM5P966X | 5-P-966X | Input Ratio Gear (S) |
| HM5P967X | 5-P-967X | Input Ratio Gear (U) |
| HM5P968X | 5-P-968X | Input Ratio Gear (W) |
| HM5P969X | 5-P-969X | Input Ratio Gear (X) |
| HM5P1214X | 5-P-1214X | Input Ratio Gear (R) |
| HM379522 | 379522 | Retaining Ring |
| HM550439 | 550439 | Bearing Cone |
| HM14P73-1 | 14-P-73-1 | Spacer 0.149”-0.151” |
| HM14P73-2 | 14-P-73-2 | Spacer 0.152”-0.154” |
| HM14P73-3 | 14-P-73-3 | Spacer 0.155”-0.157” |
| HM31P102 | 31-P-102 | Thrust Washer |
| HM9P88 | 9-P-88 | Idler Shaft |
| HM28P191 | 28-P-191 | O-Ring |
| HM379672 | 379672 | Plug |
| HM35P8 | 35-P-8 | Gasket |
| HM329361X | 329361X | Air Shifter |
| HM379639 | 379639 | Indicator Switch |
| HM35P15-1 | 35-P-15-1 | Mounting Gasket 0.010” |
| HM35P15-2 | 35-P-15-2 | Mounting Gasket 0.020” |
| HM379640 | 379640 | Connector |
| HM328356-50X | 328356-50X | Gasket and Seal Kit |
| HM328594-13X | 328594-13X | Bearing and Spacer Kit |
| HM328948-8X | 328948-8X | Gasket and Installation Instructions |
| HM328170-200X | 328170-200X | Standard Stud Kit |
| HM328170-201X | 328170-201X | Metric Stud Kit |
Ratio Gears
| INPUT GEAR | OUTPUT GEAR | ||||
| Heavy Motions® | Chelsea® Reference Number | Part Number | Teeth | Part Number | Teeth |
| HM589*F | 489*F | HM2P726 | 37 | ||
| HM589*L | 489*L | HM5P964 | 25 | HM2P727 | 34 |
| HM589*Q | 489*Q | HM5P965 | 19 | HM2P559 | 24 |
| HM589*R | 489*R | HM5P1214 | 22 | HM2P559 | 24 |
| HM589*S | 489*S | HM5P966 | 24 | HM2P637 | 22 |
| HM589*U | 489*U | HM5P967 | 26 | HM2P560 | 20 |
| HM589*W | 489*W | HM5P968 | 26 | HM2P561 | 17 |
| HM589*X | 489*X | HM5P969 | 38 | HM2P728 | 21 |
Input Gears
| Heavy Motions® | Chelsea® Reference Number | Part Number | Type | Input | Teeth Ratio |
| HM589*FAH | 489*FAH | HM5P1077 | Spur | 22 | 21 |
| HM589**AH | 489**AH | HM5P1004 | Spur | 22 | |
| HM589**BG | 489**BG | HM5P1015 | Left Helix | 23 | |
| HM589**DA | 489**DA | HM5P1037 | Spur | 23 |
Accessories
| PTO Kits Air Controls | ||
| Heavy Motions ® | Chelsea® Reference Number | Description |
| HM101V | 329648X | PTO shift valve assembly |
| HM101S-LH | n/a | PTO shift valve kit |
| HM103WK | 329358X | PTO combo valve |
| HM503WK | n/a | PTO cmbo valve – small design |
| HM1PPV | 378414 | Pressure protection valve |
| HM103WKT | n/a | PTO combo valve with tower |
| HMTower-8 | 329219X | Tower/Console |
| HM1TB | 379044-7 | Air tubing |
| HM1IL | n/a | Indicator light |
| HM379640 | 379640 | PTO wire for ball switch connector |
| PTO Conversion Kit | ||
| HM328591-16X | 328591-16X | Converts remote mount HM589 and Chelsea®442 and 489 series PTO to a direct mount PTO. |
